Pneumatic Control Valve

Pneumatic control valves engineered for precise process control in demanding industrial applications. Globe, butterfly, and ball valve configurations.

Product Lineup

Pneumatic On-Off Globe Valve
AGE30

Pneumatic On-Off Globe Valve

Pneumatic actuated globe valve designed for on-off service applications, providing reliable shut-off performance with fast response time.

Features

  • Quick open/close operation
  • Pneumatic actuator for remote control
  • Tight shut-off performance
  • Suitable for various process fluids

Specifications

Size15A ~ 400A (0.5" ~ 16")
PressureJIS 10K ~ 63K, ANSI 150# ~ 900#, PN10 ~ 25
Temperature-27°C ~ 220°C (Plain bonnet), -45°C ~ 566°C (Extended)
ConnectionFF, RF, BW, SW

Materials

BodyDuctile Iron, Cast steel, Stainless steel
PlugHard faced SUS304/316/410
SeatPTFE / Metal / Hard faced SUS304/316/410
StemSUS304/316/410
Download Catalog
Pneumatic On-Off Butterfly Valve
AGE30

Pneumatic On-Off Butterfly Valve

Pneumatic actuated butterfly valve for on-off service in large diameter pipelines requiring quick isolation.

Features

  • Large diameter capability
  • Fast quarter-turn operation
  • Compact and lightweight design
  • High flow capacity

Specifications

Size50A ~ 1200A (2" ~ 48")
PressureJIS 10K ~ 40K, ANSI 150# ~ 300#, PN10 ~ 25
Temperature-30°C ~ 200°C
ConnectionWafer, Lug, Flange

Materials

BodyCast Iron, Ductile Iron, Cast steel, Stainless steel
DiscSTS 304 / STS 316
SeatPTFE / RPTFE / Metal
ShaftSTS 304 / STS 316
Download Catalog
Pneumatic On-Off Ball Valve
AGE30_S

Pneumatic On-Off Ball Valve

Pneumatic actuated ball valve providing reliable on-off control with full bore design for minimal pressure drop.

Features

  • Full bore design for unrestricted flow
  • Quick quarter-turn operation
  • Bubble-tight shut-off
  • Low maintenance design

Specifications

Size15A ~ 100A (0.5" ~ 4")
PressureJIS 10K ~ 20K, ANSI 150# ~ 300#
Temperature-29°C ~ 200°C
ConnectionFlanged / Screwed

Materials

BodyGCD450 / WCB / CF8 / CF8M
BallCF8 / CF8M
SeatPTFE / RPTFE
StemSTS 304 / STS 316
Download Catalog
Step On-Off Butterfly Valve
AGE32

Step On-Off Butterfly Valve

Butterfly valve with step control function for multi-position on-off operation, enabling staged flow control.

Features

  • Multi-position step control
  • Staged opening/closing capability
  • Reduced water hammer effect
  • Programmable step positions

Specifications

Size50A ~ 600A (2" ~ 24")
PressureJIS 10K ~ 40K, ANSI 150# ~ 300#, PN10 ~ 25
Temperature-30°C ~ 200°C
ConnectionWafer / Lug / Flange

Materials

BodyDuctile Iron, Cast steel, Stainless steel
DiscSTS 304 / STS 316
SeatPTFE / RPTFE
ShaftSTS 304 / STS 316
Download Catalog
Pneumatic Control Globe Valve
AGE33

Pneumatic Control Globe Valve

Modulating control valve for precise flow, pressure, or temperature control with excellent throttling characteristics.

Features

  • Precise modulating control
  • Linear or equal percentage characteristics
  • Low noise and cavitation design
  • Wide rangeability

Specifications

Size15A ~ 400A (0.5" ~ 16")
PressureJIS 10K ~ 63K, ANSI 150# ~ 900#, PN10 ~ 25
Temperature-27°C ~ 230°C (Plain bonnet), -45°C ~ 566°C (Extended)
ConnectionFF, RF, BW, SW

Materials

BodyDuctile Iron, Cast steel, Stainless steel
PlugHard faced SUS304/316/410
SeatPTFE / Metal / Hard faced SUS304/316/410
StemSUS304/316/410
Download Catalog
Pneumatic Control Butterfly Valve
AGE33

Pneumatic Control Butterfly Valve

Butterfly valve with pneumatic actuator for modulating control applications requiring compact installation and high flow capacity.

Features

  • Compact design for space-limited installations
  • High flow capacity with low pressure drop
  • Quick response for control applications
  • Cost-effective large diameter solution

Specifications

Size50A ~ 1200A (2" ~ 48")
PressureJIS 10K ~ 40K, ANSI 150# ~ 300#, PN10 ~ 25
Temperature-30°C ~ 200°C
ConnectionWafer / Lug / Flange

Materials

BodyGCD450 / WCB / CF8 / CF8M
DiscCF8 / CF8M
SeatPTFE / RPTFE / SUS316L
ShaftSTS 304 / STS 316 / STS 410
Download Catalog

Explore More

Other Products

Butterfly Valve

Butterfly Valve

Concentric, double offset, triple offset, and PTFE-lined butterfly valves for reliable flow control in industrial applications.

View Details

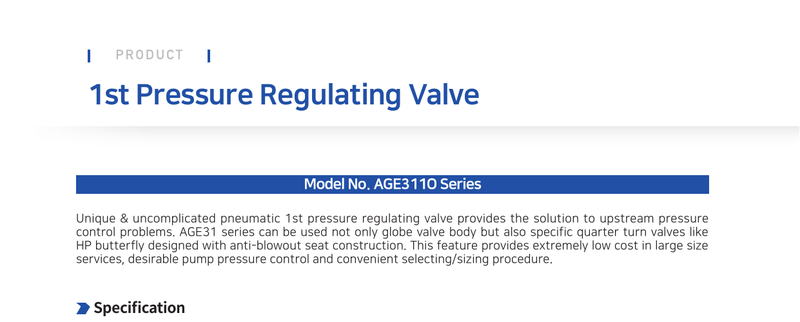

Pressure Regulating Valve
